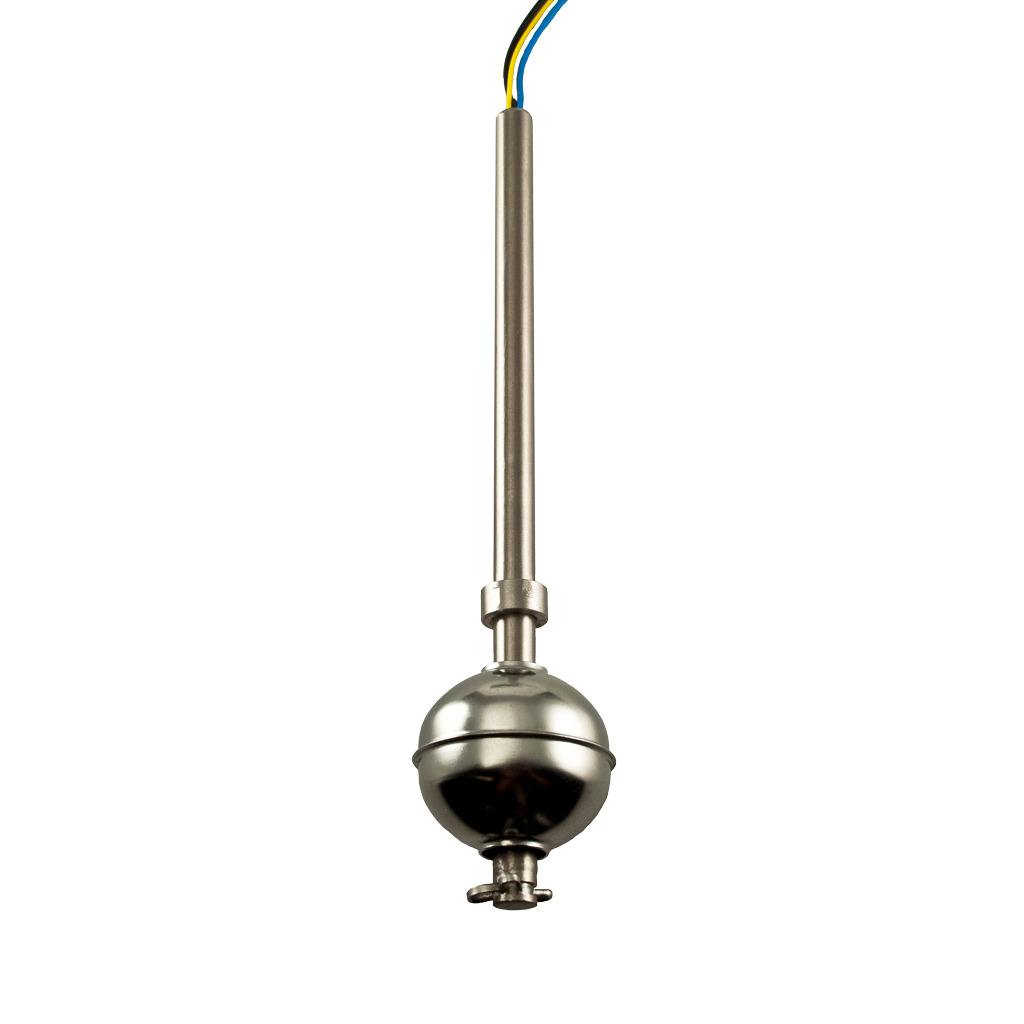

60 Series Stainless Steel Vertical Float Switch | Float Switches

SKU: N/A

Price range: £51.75 through £126.00 + VAT

Switch Type

Maximum Temperature

Clear

Product Description

The 60 Series is a robust vertical sensor manufactured in 316L Stainless Steel. It is designed for high temperature and high pressure applications. It is easily height adjustable for varying switching depths. It is available in two versions dependent on temperature requirements: our Standard version rated to 120°C, and our High Temperature version rated to 200°C.

Float Switch Applications

Ideal for most harsh environments such as food/beverage, automotive, pharmaceutical and chemical industries.

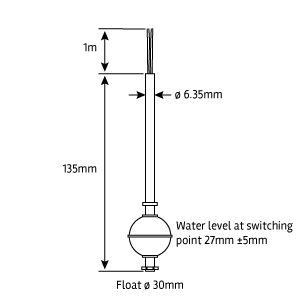

Technical Data

Small vertically mounted liquid level sensor designed for high temperature/high pressure operation and sensing chemically aggressive liquids. The design provides a cost effective solution where high reliability in a demanding environment is called for. Ideal for applications in food, automotive, pharmaceutical and chemical industries.

As shipped, the float switch is Normally Open and closes on rising to the switching point. This can be changed to Normally Closed and open on rising by inverting the float on the stem.
Technical Data

Suitable Specific Gravity	0.6
Maximum Pressure	500 p.s.i
Operating Temperature	-20°C to +120°C (Standard version) -20°C to +200°C (High Temperature version)
Switch Rating	Form A – 1A, 250V, 50W Maximum Form C – 0.25A, 60V, 4W Maximum
Cable length*	1 metre
Cable type	Black P.T.F.E insulated 7/0.2mm
Weight	30g
Mounting	Not supplied, please enquire for options
Wetted Materials	316 Stainless Steel

*other lengths available on request

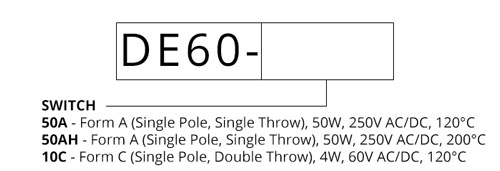

Ordering Code

Download 60 Series Datasheet

Download 60 Series High Temperature Datasheet

For more about Float Switches click here.

All electrical equipment should be installed by a qualified/certified electrician. Reed Switches are easily damaged by inductive loads. Please ensure adequate electrical protection is in place before use.

Frequently Asked Questions

Is the 60 Series a high temperature float switch?

Yes. The standard 60 Series stainless steel vertical float switch is rated from -20°C to +120°C, while the high-temperature version is rated from -20°C to +200°C. The correct version should be selected for the maximum process temperature.

What liquids is the 60 Series stainless steel float switch suitable for?

Its 316 stainless steel wetted parts make the 60 Series suitable for many demanding liquids, including applications in food and beverage, automotive, pharmaceutical and chemical environments. Material compatibility should be confirmed for the exact liquid, concentration and operating temperature.

Can the 60 Series switch be set to normally open or normally closed?

Yes. The switch is supplied normally open and closes as the liquid rises to the switching point. Inverting the float on the stem changes it to normally closed operation, opening as the liquid rises.

What pressure can the 60 Series vertical float switch withstand?

The published maximum pressure for the 60 Series is 500 psi. The complete installation, including the mounting and process connection, must also be suitable for the operating pressure.

Is the 60 Series certified for hazardous areas?

The standard 60 Series page does not state ATEX or IECEx certification. Where a float switch is required for a potentially explosive atmosphere, select a Deeter hazardous-area product with the appropriate certification for the zone and application.
