£8.50£12.55 + VAT

Product Description

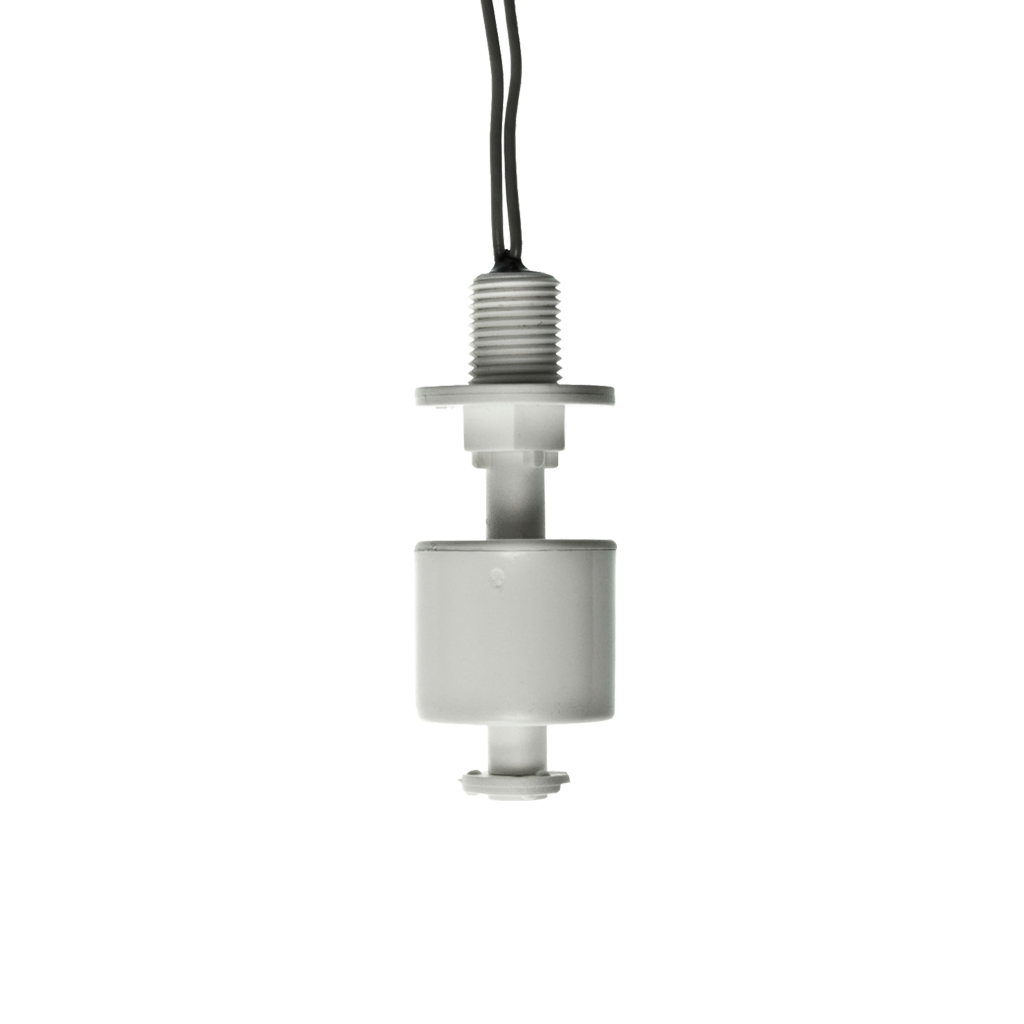

The 20 Series Micro-Miniature Vertical Float Switch is a cost-effective mini float switch for high volume OEM applications. The micro-miniature packaging allows for accurate sensing within a very small form factor, ideal for small spaces.

Download 20 Series Datasheet


This vertical float switch is suitable for food/beverage, automotive, consumer and medical applications.

Technical Data

vertical float switch 20 series technical information
  • Designed for cost sensitive high volume OEM applications
  • High reliability reed switch lifetime of 5 x 107 operations
  • Available in UL/WRC listed PVC,Polypropylene,Acetal and Nylon materials
  • Change from N/O to N/C by inverting float
  • Ideal for beverage,automotive and consumer applications


  • Form A Switch,1 Watt max.
  • 24v DC switching voltage max.
  • 0.1A switching current max.
  • 150v DC breakdown voltage min.
  • 7/0.2mm PVC insulated cable
  • 7/0.2mm PTFE insulated cable on Acetal switch


  • 1/8″NPT &M10 mounting
  • 1m Cable length
  • 0.1A switching current max.
  • Float SG PVC (0.63),Polypropylene (0.49) Acetal (0.62) and Nylon (0.5)

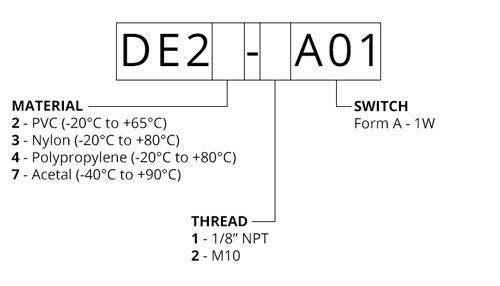

Ordering Code

vertical float switch 20 series ordering code

Download 20 Series Datasheet

For more about Float Switches click here.

All electrical equipment should be installed by a qualified/certified electrician. Reed Switches are easily damaged by inductive loads. Please ensure adequate electrical protection is in place before use.
