Product Description

Features:

  • ATEX, IECEx, USA & Canadian intrinsic safety certification.
  • Large non multiplexed displays, models with:
    4 digits: 34mm high
    5 digits: 29mm high + bargraph
  • IP66 GRP enclosure
  • ‘E’ models have separate terminal compartment
  • -40°C to +70°C operation
  • Internal calibrator
  • Root extractor and lineariser
  • Tare function
  • Optional:
    Backlight – may be loop or separately powered
    Alarms
    Escutcheon scale and tag labelling
    Engraved stainless steel legend plate

These fourth generation intrinsically safe 4/20mA loop powered indicators have large high contrast displays with a very wide viewing angle. Operating over an extended temperature range they contain many standard features previously only available as options. Extensive thermal and vibration testing provides maximum reliability supported by a three year guarantee.

No additional charge is made for factory calibration or for scale card or escutcheon marking, although the indicators can easily be recalibrated on-site.

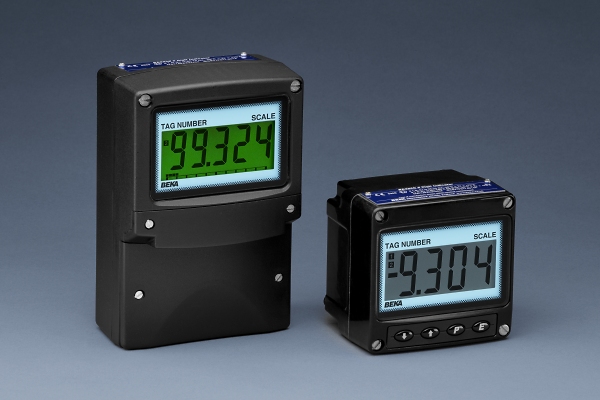

Model BA304E 4/20mA Loop powered indicator BA324E 4/20mA Loop powered indicator BA304G 4/20mA Loop powered indicator BA324G 4/20mA Loop powered indicator
Mounting & Enclosure Field
141 x 212
Field
122 x 120
Separate terminal compartment Yes No
Protection IP66
Display 4 digits 34mm high 5 digits 29mm high + bargraph 4 digits 34mm high 5 digits 29mm high + bargraph
Certification
Europe ATEX Group II Category 1G
Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +70°C
Group II Category 1G
Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +70°C

Group II Category 1D Ex ia IIIC T80°C Da IP66, -40°C ≤ Ta ≤ +70°C

USA ETL & Canada cETL
Intrinsic safety
FM and cFM certification optional
See below
Class I, Div 1, Gp A, B, C, D T5
(USA & Canada)
Class I, Zone 0, AEx ia IIC T5 Ga (USA)
-40°C ≤ Ta ≤ 70°C

Class II, Div 1, Gp E, F, G. Class III, Div 1
(USA & Canada)
Zone 20 AEx ia IIIC T80°C Da (USA)
-40°C ≤ Ta ≤ 60°C

Ex ia T5 Ga -40°C ≤Ta ≤ 70°C (Canada)
Ex ia IIIC Da -40°C ≤ Ta ≤ 60°C (Canada)
USA ETL & Canada cETL
Nonincendive
FM and cFM certification optional
See below
Class I, Div 2, Gp A, B, C, D T5
Class II, Div 2, Gp F, G
Class III, Div 2
-40°C ≤ Ta ≤ 70°C
International IECEx Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +70°C Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +70°C

Ex ia IIIC T80°C Da IP66 -40°C ≤ Ta ≤ +70°C

Optional
Alarms Yes
Backlight,
which may be loop or separately powered
Yes
External push buttons Yes Standard
Escutcheon scale and tag labelling
(no charge)
Yes Yes
Slide-in
Etched stainless
steel legend plate
Yes
USA FM & Canada cFM
Intrinsic safety

Class I Division 1 Groups A, B, C & D T5
Class II Division 1 Groups E, G & G T5
Class III T5
Class I Zone 0 AEx ia IIC T5
Tamb -40°C ≤ Ta ≤ +70°C

Standard

All models have ETL and cETL certification
See above
USA FM & Canada cFM
Noninsendive
Class I, Div 2, Gp A, B, C, D T5
Class II, Div 2 Gp E, F, G T5
Tamb -40°C ≤ Ta ≤ +70°C
Standard

All models have ETL and cETL certification
See above
Europe ATEX
Dust certification
Group II Category 1D Ex ia IIIC T80°C Da IP66, -40°C ≤ Ta ≤ +70°C Standard
International IECEx
Dust certification
Ex ia IIIC T80°C Da IP66 -40°C ≤ Ta ≤ +70°C Standard
