Deeter Electronics offers a wide range of float switches and level sensors suitable for most applications across a broad range of industries.
Hazardous Area Products
Our range of hazardous area products with ATEX and IECEx certification, include float switches, liquid level sensors and load cells. We can offer products with Ex d Explosion Proof approvals for use in hazardous areas without the need for an intrinsic safety barrier. In addition, we have products available for hazardous areas which are suitable for use in Intrinsically Safe Systems with the use of a Safety Barrier.
Hazardous Area Products include:
- Explosion proof horizontal float switches
- Explosion proof continuous vertical liquid level sensors (LVCS)
- Hazardous area float switch for intrinsically safe systems
- Explosion proof vertical float switches
- ATEX certified weighing equipment
- Hazardous area ultrasonic sensors
- Zener diode safety barrier

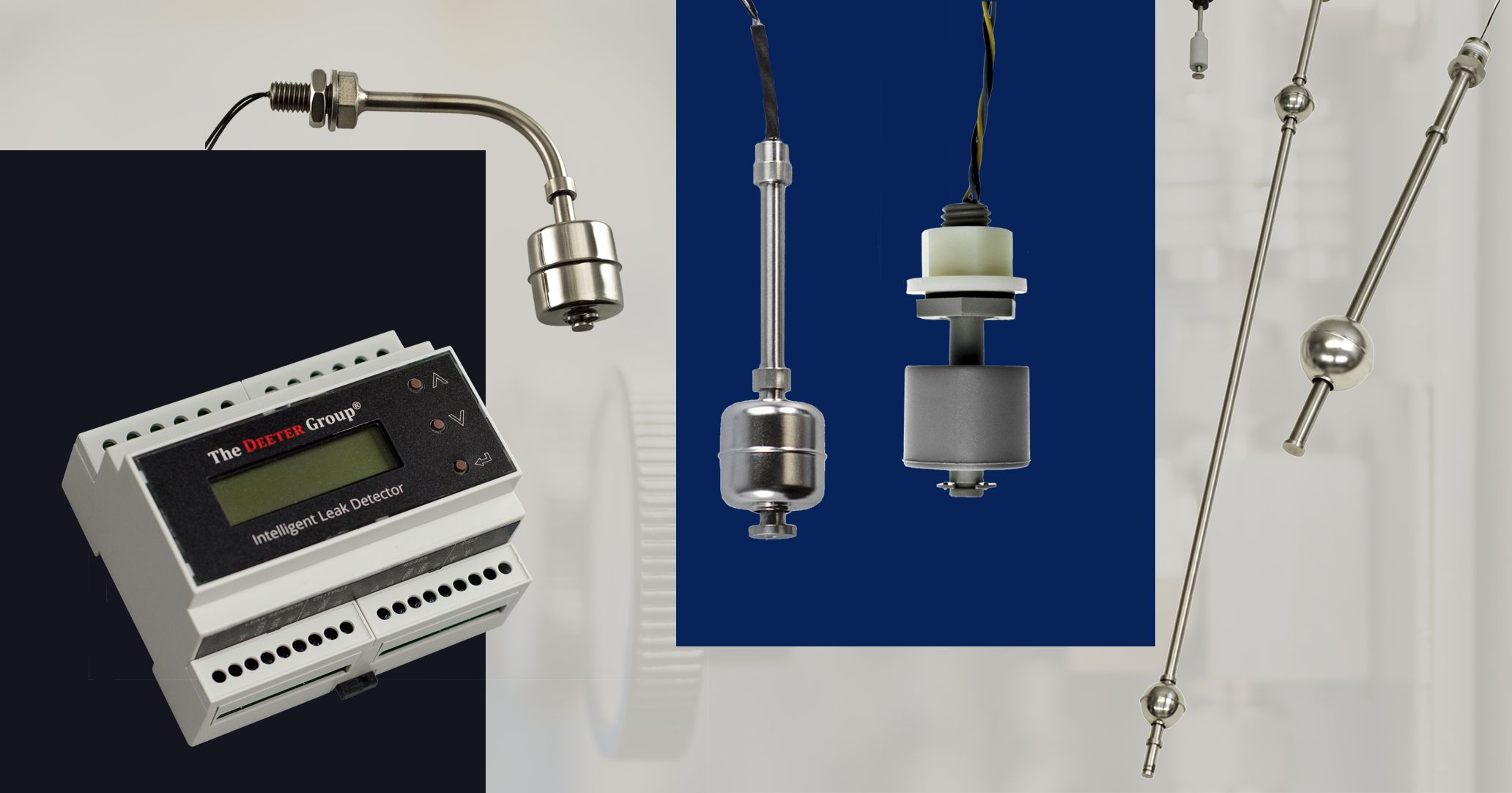

Float Switches and Level Sensors
Liquid Level Sensors suitable for a variety of applications – from our 20 Series Compact Float Switch to our LVCS Series Continuous Vertical Liquid Level Sensor we have a sensor appropriate for most requirements.
Our Float Switches are available in a range of materials including Stainless Steel for high temperature and hazardous chemical applications, PVC, PPS, Nylon,
Polypropylene and Acetal to allow us to provide a Level Sensor for all applications and environments.
- Continuous vertical liquid level sensors
- Continuous vertical liquid sensors with integrated display
- High temperature stainless steel float switches
- Vertical float switches
- Horizontal float switches
- > view more information on float switches and level sensors
Dual Level Controller
The Dual Level Controller allows control of the liquid level in a tank between two points and/or an extra control output in the event that the tank over or under fills. The Dual Level Controller (DLC) provides safe low voltage for the level switches which may become submersed and has high power relay contacts to control a pump or a solenoid valve in a gravity fed top-up system.
Ultrasonic Sensor Technology
Ultrasonic sensors have long been used for range measurements, tank level control, web brake and proximity detection when difficult environments, challenging reflection surfaces or the need for extreme accuracy render traditional optical sensing devices unsuitable. We offer a wide variety of high-quality standard ultrasonic sensors and controllers, as well as design assistance for semi-custom units.
Deeter Electronics also supply a fantastic range of easy to install, low maintenance, non contact ultra-sonic level meters & remote systems for the measurement and control liquid & sludge levels.
Leak Detection Systems
Water damage is one of the most common types of property damage and preventing this can save property owners a lot of money in the long run. Our Intelligent Leak Detector Sensors are able to detect even the smallest amount of moisture and will send a signal to the Intelligent Leak Detector Controller. The Controller can identify each sensor and provide information about the location of any leak whenever a leak is detected. The controller also has a variety of outputs which may be used to directly drive pumps and alarms, or to interface with other equipment such as a Building Management System (BMS).
When used in conjunction with the deeternet® Wireless Gateway it allows the monitoring of up to 1200 Intelligent Leak Detector Sensors at any one time. This combination of two of our newest products will be instrumental in preventing water damage in many different types of buildings.
Using this configuration the Wireless Gateway can be connected to the internet in order to allow the user to actively monitor the current status of all Intelligent Leak Detector Sensors within their system. The system can also be configured to allow users to remotely access the Wireless Gateway sensor data and they can be notified via email or SMS of the location of any leak that has been found. This allows any leak to be responded to as quickly as possible, avoiding any critical water damage to the property.
deeterflow® Liquid Dispensing Systems
The deeterflow® Liquid Dispensing Systems deliver a measured volume of liquid at the request of a user, with great precision of ±1% of dispensed volume.
There are three deeterflow® systems: the Automatic Liquid Dispenser, Liquid Dispenser and Low Volume Liquid Dispenser.
deeternet® Wireless Sensor System
The deeternet® Wireless Sensor System interfaces with any 4-20mA sensor to enable reliable wireless communication with the sensor. It is suitable for installation in environments where it would be difficult or impractical to run cables. It can also be used as a backup to an existing wired system to ensure continued transmission of sensor data in the event of cable failure. The system communicates using the IEEE 802.15.4 wireless network protocol, in the internationally approved, licence-free, 2.4GHz ISM frequency band. Wireless range can be up to 1km, subject to environmental conditions, antenna location and interference from other radio equipment.
