Range 2-40 feet
Analog output
Temperature compensation

Download RPS-3000PVC, RPS-4000 Datasheet

Product Description

  • Simple Calibration
  • Non-Contact
  • Temperature Comp.
  • Analog 4-20mA Output
  • Sensitivity Control
  • Easy Installation
  • Self-Contained
  • LED Indicator
  • Quick Disconnect
  • Affordability
  • Microprocessor Design

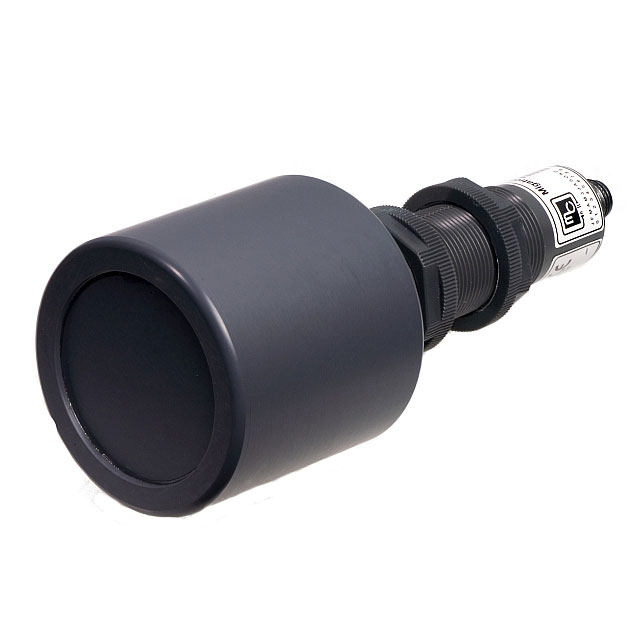

The RPS-4000 self-contained long range Ultrasonic Sensor provides level control of both liquid and bulk materials. This gives the user a viable alternative to bubblers, floats, capacitance probes, and pressure transmitters.The RPS-450 product line features solid state construction including the solid state relay outputs. The sensor operates in the ultrasonic spectrum and is therefore not heard. For initial setup purposes, a built in potentiometer and LED indicator are provided.

The LED indicator illuminates when the ultrasonic wave from the sensor is reflected back to the sensor within the desired range. The sensor provides precise proximity or level sensing regardless of target color, density, or transparency. The sensor is equally effective on liquid, metal, plastic, or glass targets.

Download RPS-3000PVC, RPS-4000 Datasheet


Operational Range: Adjustable 2 – 40′
Power Input: 20 – 30VDC Reverse Polarity Protected
Input Current: 125mA
Ambient Temperature: -20 – 60ºC or -5 – 140ºF
Humidity: 0 – 95% Non-Condensing
Enclosure: PVC housing with PVC sensing face
Outputs: Current Sourcing Analog Output 4 – 20mA Inverted & Non-Inverted, Load 0 – 500 Ohm Maximum, Short Circuit Protected
Transducer Frequency: 38kHz
Transmit Time: Transmit time equals the sensors maximum distance x 10ms. For example if the maximum programmed distance is 10′ the transmit time is 100ms.
Weight: 15 ounces
