Type nA Non-Sparking 4-20mA Loop Powered Indicators, Panel Mounting
Product Description
Features:
- ATEX, IECEx, US & Canadian Ex nA & Ex tc certification eliminates the need for Zener barriers and galvanic isolators.
- Large non multiplexed displays, models with:
4 digits: 15mm high
5 digits: 11mm high + bargraph - Rugged stainless steel cases for use in Ex n, Ex e,
Ex p and Ex t panel enclosures in Zones 2 & 22 - Internal calibrator
- Root extractor and lineariser
- Tare function
- Optional:
Backlight – may be loop or separately powered
Alarms
These loop powered indicators have third party Ex nA and Ex tc certification allowing them to be installed in a Ex n, Ex e, Ex p or Ex t panel enclosure located in Zone 2 or 22 without the need for a barrier or galvanic isolator. They have rugged stainless steel cases and large high contrast displays with a wide viewing angle and can operate over a wide temperature range.
Both models can be supplied custom calibrated and labelled with scale and tag information for no additional charge.

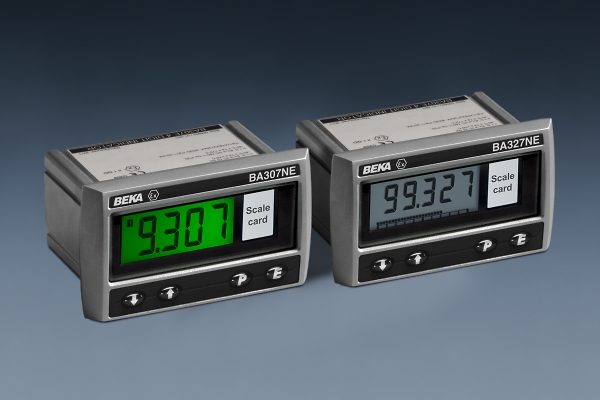

| Model | BA307NE 4/20mA Loop powered indicator | BA327NE 4/20mA Loop powered indicator | |
| Mounting & Enclosure | Panel | ||
| Protection | Front IP66, rear IP20 | ||
| Display | 4 digits 15mm high | 5 digits 11mm high + bargraph | |
| Certification | |||
| Europe ATEX | Gas – Group II Category 3G Ex nA ic IIC T5 Gc -40°C ≤ Ta ≤ +70°C Dust – Group II Category 3D Ex tc IIIC T80°C Dc IP20 -40°C ≤ Ta ≤ +70°C |
||
| USA ETL |
Class I, Zone 2, AEx nA ic IIC T5 Gc Zone 22, AEx ic tc IIIC T80°C Dc -40°C ≤ Ta ≤ 60°C |
||
| Canada ETL |
Ex nA ic IIC T5 Gc: Ex n IIC T5 Gc Ex ic tc IIIC T80°C Dc -40°C ≤ Ta ≤ 60°C |
||
| International IECEx | Gas – Ex nA ic IIC T5 Gc -40°C ≤ Ta ≤ +70°C Dust – Ex tc IIIC T80°C Dc IP20 -40°C ≤ Ta ≤ +70°C |
||
| Optional | |||
| Alarms | Yes | ||
| Backlight, which may be loop or separately powered |
Yes | ||
| Scalecard and tag/application marking (no charge) | Yes | ||
| Downloads | |||
| Datasheets | |||
| ATEX Certificates | |||
| ETL Certificates | |||
| IECEx Certificates | |||
