Product Description

Features:

  • ATEX & IECEx gas & dust intrinsic safety certification.
  • FM & cFM gas intrinsic safety certification
  • Large non multiplexed displays, models with:
    4 digits: 34mm or 15mm high
    5 digits: 29mm or 11mm high + bargraph
  • IP66 Front panel
  • Rugged stainless steel models for use in Ex e, Ex p and
    Ex t panel enclosures in Zones 1, 2, 21 & 22.
  • -40°C to +70°C operation
  • Internal calibrator
  • Root extractor and lineariser
  • Tare function
  • Optional:
    Backlight – may be loop or separately powered
    Alarms

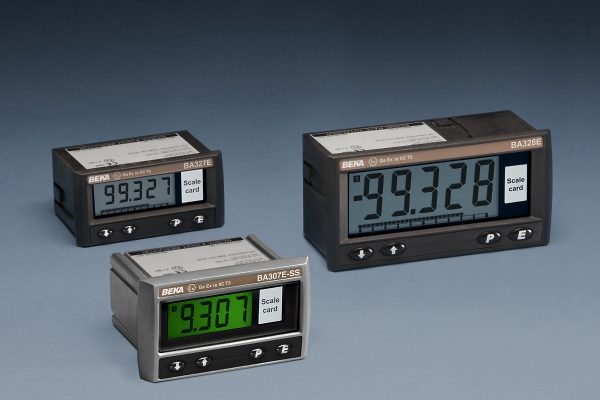

These BA307E, BA307E-SS, BA308E, BA327E, BA327E-SS, & BA328E fourth generation intrinsically safe 4/20mA loop powered indicators have large high contrast displays with a very wide viewing angle. Operating over an extended temperature range they contain many standard features previously only available as options. Coated printed circuit boards plus extensive thermal and vibration testing provides maximum reliability supported by a three year guarantee.

No additional charge is made for factory calibration or for scale and tag marking, however the indicators can easily be recalibrated on-site.

Model BA307E 4/20mA Loop powered indicator BA308E 4/20mA Loop powered indicator BA327E 4/20mA Loop powered indicator BA328E 4/20mA Loop powered indicator BA307E-SS 4/20mA Loop powered indicator BA327E-SS 4/20mA Loop powered indicator
Mounting &
Enclosure
Panel
96 x 48
Panel
144 x 72
Panel
96 x 48
Panel
144 x 72
Rugged stainless steel panel 105 x 60 Rugged stainless steel panel 105 x 60
Protection Front IP66, rear IP20
Display 4 digits 15mm high 4 digits 34mm high 5 digits 11mm high
+ bargraph
5 digits 29mm high
+ bargraph
4 digits 15mm high 5 digits 11mm high
+ bargraph
Certification
Europe
ATEX
Gas – Group II Category 1G Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +70°C
Dust – Group II Category 1D Ex ia IIIC T80°C Da IP20 -40°C ≤ Ta ≤ +70°C
  May be installed in Ex e, Ex p or Ex t panel enclosure without invalidating enclosure certification.
USA FM &
Canada cFM
Entity IS / I / A, B, C, D / T5 Ta = 70°C
I / 0 / AEx ia IIC / T5 Ta = 70°C

Non incendive NI / I / 2 / ABCD / T5 Ta=70°C – NIFW
NI / II / 2 / EFG / T5 Ta=70°C – NIFW
NI / III / 2 / T5 Ta=70°C – NIFW
NI/ I / 2 / IIC / T5 Ta=70°C – NIFW

Entity IS / I / A, B, C, D / T5
Ta = 70°C
I / 0 / AEx ia IIC / T5 Ta = 70°C

May be installed in AEx e, AEx p or AEx t panel enclosure without invalidating enclosure certification.

Non incendive
NI / I / 2 / ABCD / T5
Ta=70°C – NIFW
NI/ I / 2 / IIC / T5
Ta=70°C – NIFW
International IECEx Gas – Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +70°C
Dust – Ex ia IIIC T80°C Da IP20 -40°C ≤ Ta ≤ +70°C
  May be installed in Ex e, Ex p or Ex t panel enclosure without invalidating enclosure certification.
Optional
Alarms Yes
Backlight,
which may be loop or separately powered
Yes
Scalecard and tag / application marking (no charge) Yes
