Product Description

Features:

  • ATEX and flame proof certification.
  • ± 99999 display, 10mm high
  • IP66, NEMA 4X aluminium & 316 stainless steel enclosure.
  • No additional charge for configuration & calibration
  • Configurable on-site via free Windows® compatible software.

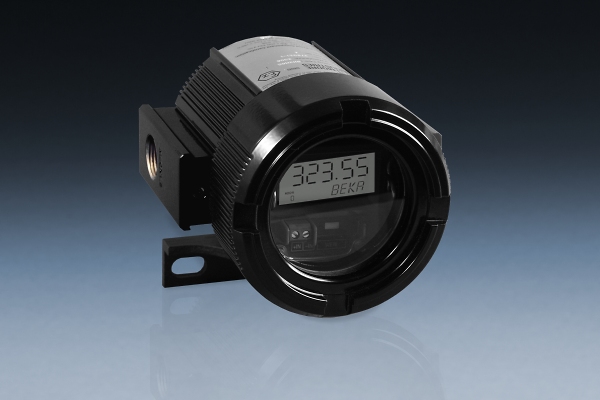

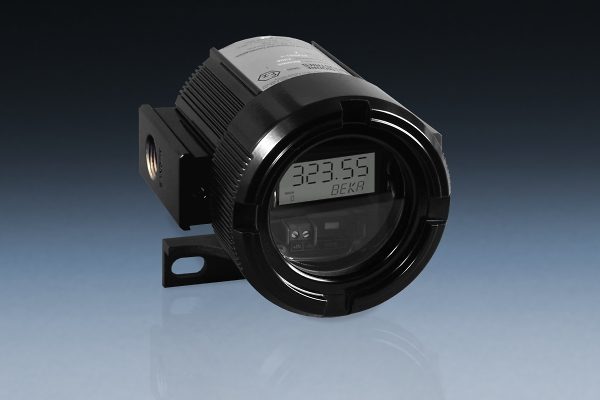

Five digit ATEX flame proof, loop powered indicators housed in aluminium or 316 stainless steel enclosures.

Configuration and calibration is performed via simple Windows® compatible software connected to the instrument by a temporary serial communications cable.

Units of measurement can be displayed on a five digit alphanumerical display below the numerical display. Characters are entered via the configuration software and are remembered by the instrument when the 4/20mA measurement loop is disconnected.

Model BR323AL 4/20mA Loop powered indicator BR323SS 4/20mA Loop powered indicator
Mounting & Enclosure Epoxy painted aluminium 316 stainless steel
Protection IP66, NEMA 4X enclosures
Display 5 digits 10mm high
Certification
Europe ATEX ATEX Group II Category 2GD Exd T6 -20°C ≤ Ta ≤ +60°C
