Product Description

Features:

  • ATEX & IECEx intrinsic safety certification
  • Combined analogue & digital display
  • External keypad
  • Internal calibrator
  • Square root extractor
  • Optional:
        Alarms
    Separately powered backlight
    16 point lineariser

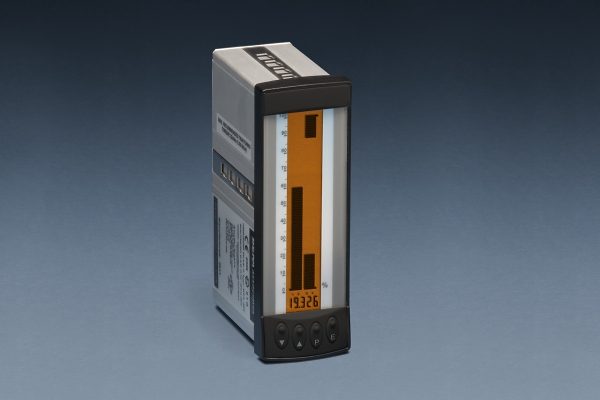

A BA326C basic loop powered indicator that is easy and inexpensive to apply as it does not require an additional power supply or extensive wiring.

Accessories including alarms, linearisers, and a separately powered backlight further extend the application of this instrument.

This loop powered indicator has ATEX and IECEx intrinsic safety certification.

This model is supplied calibrated to customer’s requirements free of charge and can be labelled to show units of measurement, tag number and application.

Model BA326C 4/20mA Loop powered indicator
Mounting & Enclosure Panel 48 x 144
Protection Front IP65, rear IP20
Display 4½ digit 5.5mm high + two 100 segment bargraphs 95mm high
Certification
Europe ATEX ATEX Group II Category 1G
Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +60°C
International IECEx Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +60°C
Options
Alarms Yes
Separately powered backlight Yes
Lineariser Yes
