Product Description

The 50 Series Liquid Level Sensor is an internally mounted vertical float switch designed for high reliability, making it ideal for most applications. This sensor offers a versatile and cost-effective solution.

[Download not found]


Ideal for food/beverage, automotive, chemical and scientific applications.

Technical Data

  • Vertically mounted miniature liquid level sensors designed for internal tank mounting.
  • The design provides a cost effective solution where high reliability in a demanding environment is called for.
  • Available in UL/WRC listed PVC, Polypropylene, PPS and Nylon materials to permit use in most chemical and temperature environments.
  • Coupled with a choice of switching options this design is ideal for food, automotive, petroleum, chemical and laboratory applications
Technical Data White PVC Black Nylon Grey Polypropylene Blue PPS
Suitable Specific Gravity 0.8 0.7 0.7 0.9
Maximum Pressure 200KPa 200KPa 200KPa 200KPa
Operating Temperature -20 to +65°C -20 to +125°C -20 to +80°C -30 to +125°C
PVC Cable length* 1 metre 1 metre 1 metre 1 metre
Weight 32g 32g 32g 32g

*other lengths available to order

[Download not found]

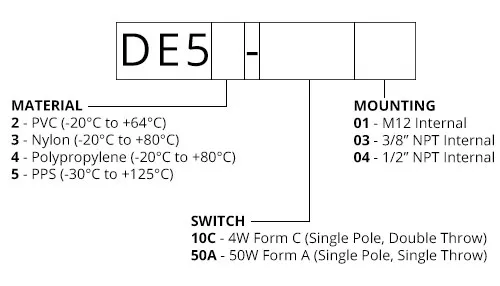

Ordering Code
