30 Series Horizontal Float Switch 240v
$22.85 – $25.25
Product Description
The 30 Series Float Switch 240v is a horizontally mounted liquid level sensor suitable for harsh environments. It has a self cleaning hinge mechanism and can be changed from Normally Open to Normally Closed operation to allow for sensing of high or low conditions by rotating the orientation of the body through 180°.
[Download not found]Applications
Ideal for use in Beverage, Automotive, Pharmaceutical and Chemical Industries.
Technical Data
Features include:
- High Power Switching
- Self cleaning hinge mechanism
- Suitable for harsh environments
- Good chemical resistance
- Wide operating temperature range
| Part Numbers | Material | Thread size | Switch contact ratings (Resistive load) |
| DE33-90A | Nylon | M12 | 90W/3A; 240v AC/200v DC |
| DE34-90A | Polypropylene | M12 | 90W/3A; 240v AC/200v DC |
For Chemical resistance data contact the sales office.
Higher switch ratings available
| Technical Data | Nylon | Polypropylene |
| Suitable specific gravity | 0.7 | 0.7 |
| Maximum Pressure | 400KPa | 400KPa |
| Operating Temperature | -20°C to + 125°C | -20°C to + 80°C |
| PVC Cable length | 1000mm | 1000mm |
| Weight | 38g | 38g |

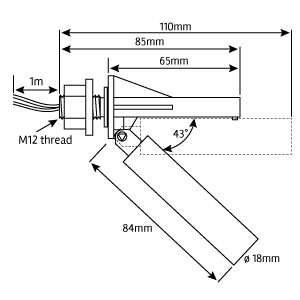

| Fixing | Hole size | Torque | Wall thickness (Max.)* |
| M12 Internal | 12.5mm (Deburred) | 6.8Nm | 10mm |
* For larger wall thicknesses contact the sales office for advice

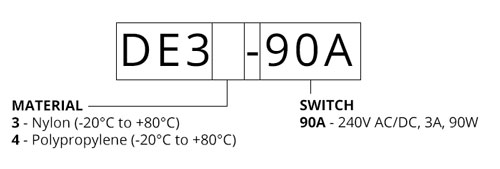

Ordering Code
For more about Float Switches click here.
All electrical equipment should be installed by a qualified/certified electrician. Reed Switches are easily damaged by inductive loads. Please ensure adequate electrical protection is in place before use.
