Product Description

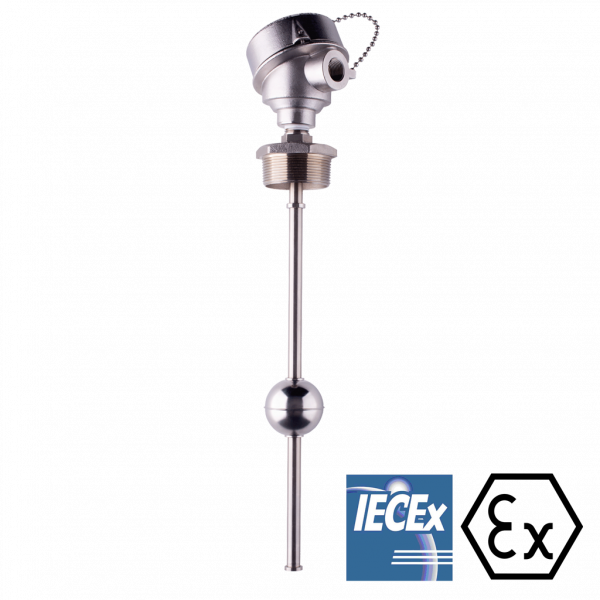

The Deeter LVCS-FP continuous vertical explosion proof level sensor is a magnetic float on a reed switch or Hall Effect sensor stem for control and indication of a liquid level while in a potentially explosive atmosphere.


Features include:

  • ATEX and IECEx approved.
  • Standard lengths or custom length sensor stems up to 6 Metres.
  • Stainless steel 316L housing and wetted components.
  • Suitable for gas and dust environments.
  • IP68 Ingress protection.
  • Reed switch or Hall Effect sensing technology.
  • Voltage and current loop analogue output.
  • Programmable set point triggers.
  • M20 and ½”NPT cable connections.
  • Custom mounting options available.
  • Narrow sensor stem and mounting for tanks without internal access.
  • Suitable for high liquid temperatures.
  • Can be specified for liquid temperatures down to -55°C

The LVCS-FP explosion proof level sensor holds ATEX & IECEx Ex d certification for use in most regions worldwide.


Approval ATEX & IECEx
Applicable Standards ATEX & IECEx
Ex Coding With Mounting Adaptor:
Ex II 1/2G 2D
Ex db IIC (*) Ga/Gb -55°C≤Ta≤+85°C
Ex tb IIIC (*) Db -40°C≤Ta≤+85°C
IP68 Without Mounting Adaptor:
Ex db IIC (*) Gb -55°C≤Ta≤+85°C
Ex tb IIIC (*) Db -40°C≤Ta≤+85°C
IP68* Temperature class options to suit environment and process temperatures:

  • T5 / T100°C for process temperatures ≤ 85°C
  • T4 / T135°C for process temperatures ≤ 125°C
  • T3 / T200°C for process temperatures ≤ 190°C

ATEX Certificate: ExVeritas 17ATEX0301X
IECEx Certificate: IECEx EXV 17.0030X
Refer to certificate for clarification of directive code and equipment protection level.

Sensor technology Magnetic float with reed switch
Magnetic Float with Hall Effect sensors
Reed switch sensing resolution
    ø12mm stem 5mm
    ø8mm stem 6.5mm
Hall Effect sensing in ø12mm stem 15mm
Interface options:
    4-20mA 4 to 20mA for 10Ω to 1.2kΩ load
    0-2V 0 to 2.048V @ 5mA
    0-4V 0 to 4.096V @ 5mA
    0-10V 0 to 10.0V @ 5mA
    4-20mA Loop powered 4 to 20mA for 10Ω to 1.2kΩ load
    Multi interface 4 to 20mA for 10Ω to 1.2kΩ load
and 0 – 10V @ 5mA
and 2 X open collector transistor
Sensor tube and wetted materials Stainless steel 316L
Connection head material Stainless steel 316L
IP/Ingress rating with suitable cable gland IP66/68 for indoor or outdoor
Approximate weight
    ø12mm stem 1kg+process connector + 0.5kg/Metre
    ø8mm stem 1kg+process connector + 0.3kg/Metre
Float Diameter: Specific gravity
    ø12mm stem Float ø53mm : specific gravity 0.65
    ø8mm stem Float ø30mm : specific gravity 0.75
Maximum liquid temperature
    Reed switch -20 to +85°C Standard
LVCS FP for liquids with maximum temperature between 85°C and 180°C or minimum temperatures below -20°C are available
    Hall Effect -10 to +45°C
Maximum head temperature -55 to +80°C for Gas Hazard
-40 to +80°C for Gas Hazard
Maximum operating pressure 150PSI / 10Bar standard
450PSI / 31Bar optional
Thread connection-Sensor tube ½”-14 NPT
Thread connection-Wiring port ½”-14 NPT or M20X1.5
Connection head height 95mm
Power supply
    4-20mA 15 to 28Volts. Typical [email protected]
    0 to 2V 5 to 28Volts. Typical [email protected]
    0 to 4V 7 to 28Volts. Typical [email protected]
    0 to 10V 14 to 28Volts. Typical [email protected]
    4-20mA Loop powered 17 to 25Volts via current loop
    Multi interface 8 to 25Volts. Typical [email protected]
Current loop output. RLoad 10Ω to 1.2kΩ
Multi interface-
open collector transistor
28Vdc Max. 50mA  Max
Altitude 2000 Metres Maximum
Pollution degree (enclosure interior) 2
Installation Category CAT I
Certificate Download For products manufactured after March 2018:

Download ExVeritas LVCS FP & F/S FP ATEX Certificate


Download ExVeritas LVCS FP & F/S FP IECEx Certificate

For products manufactured before March 2018:

Download Sira LVCS FP & F/S FP ATEX Certificate


Download Sira LVCS FP & F/S FP IECEx Certificate

Datasheet Download

Download LVCS FP Datasheet

Installation Instructions Download

Download LVCS FP Manual

Please contact us for datasheets and manuals for products manufactured prior to March 2018
